R&F/RAD ROOMS


R&F Rooms are smaller, more basic radiology rooms which also require lead shielding. The A&E team must evaluate the structure and routing of utilities overhead which is required for ceiling mounted equipment that is suspended from unistrut framing.

The architect must understand how the equipment is to move about the room which is critical to a successful design and operation of the space.

MAGNETIC RESONANT IMAGING (MRI)

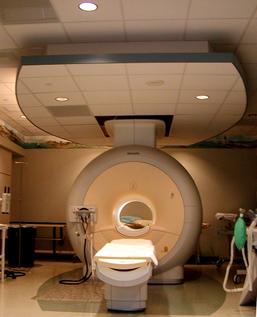

Magnetic Resonant Imaging (MRI) is performed by placing the patient in a powerful magnetic field and utilizing radio frequencies to generate images.

The equipment is contained in a RF enclosure, typically copper, that requires filters and penetration panels. The 5 gauss line must be contained in the room otherwise steel shielding can be required.

The architect's team must carefully consider cryogen vents, structual analysis and/or modification to the mechanical system, which are all keys to a successful design. Independent dual chillers are also required for the magnetic coils and the shield cooler.

CATH LAB


Catherization is used to identify cardiac and vascular problems in order to determine and implement therapy to improve blood flow or cardiac performance.

Waiting, recovery, control room, cath lab and support spaces are all parts of the design program of space. Cath Labs are strictly regulated since it is an invasive procedure that requires  a sterile environment.

Isolated power and a sophisticated mechanical system are both required. Overhead support and floor loading are also considerations in the Cath Lab design.
